04 Systems in focus

A closer look at our cardiac diagnostic and electrosurgery range

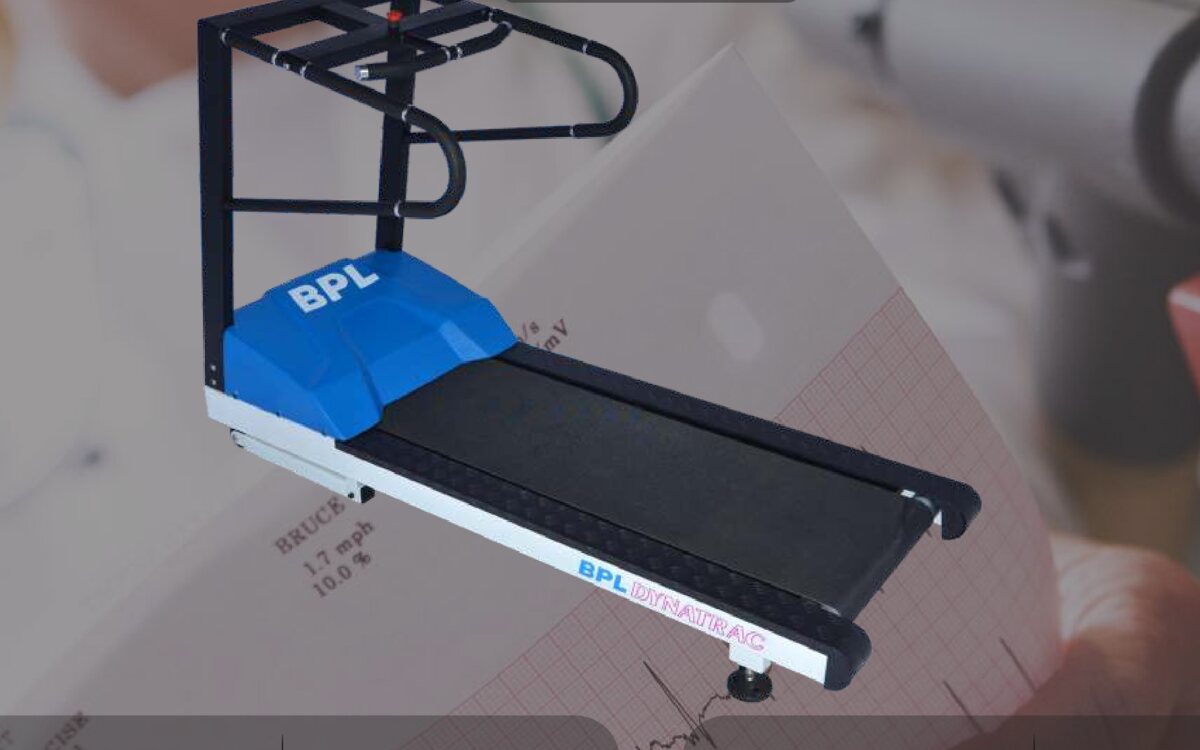

BPL Dynatrac Ultra premium stress test system treadmill

Cardiac Diagnostics

ECG Stress Test System — BPL Dynatrac Ultra

A treadmill stress test puts the heart under controlled, progressively increasing workload, so that ischemia, arrhythmias and abnormal blood-pressure responses which stay hidden at rest become visible. The Dynatrac Ultra brings the whole test onto one screen: a medical-grade motorized treadmill, the Dynatrac Neo acquisition unit, and Windows-based software running BPL's HES interpretation algorithm.

During the test the software drives the treadmill through the selected protocol automatically — Bruce and other presets, or a protocol programmed by the user — while acquiring all 12 leads simultaneously at 1000 samples per second. The HES algorithm handles arrhythmia analysis and motion-artifact reduction, and METS are displayed live so the cardiologist can follow cardio-respiratory fitness as each stage advances. The Bluetooth-enabled Dynatrac Neo BT transmitter replaces the patient cable with a wireless link, cutting motion artifact further and letting the patient move freely.

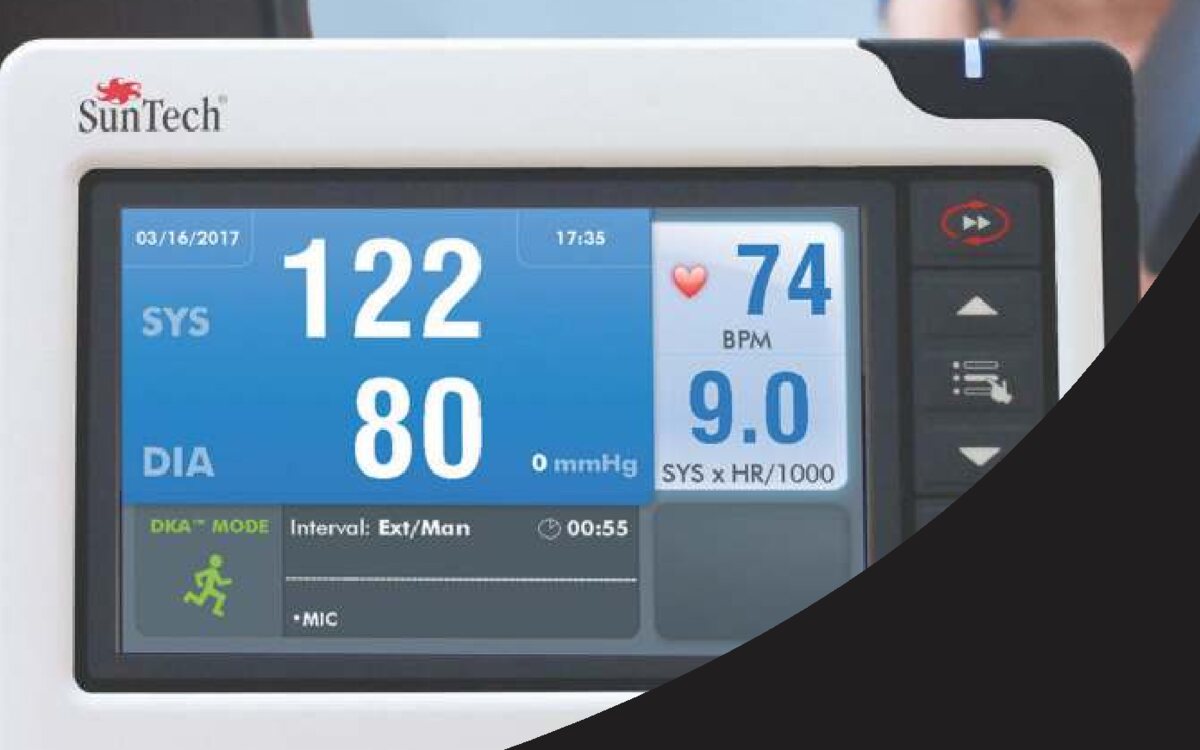

Blood pressure is captured by the integrated SunTech Tango M2, which uses R-wave gated Korotkoff-sound analysis to read accurately through the noise and movement of an active patient — with a non-exercise mode for patient set-up and recovery, and a stat mode for rapidly repeated readings.

Automatic treadmill control during 12-lead recording
Preset and user-programmed exercise protocols
Arrhythmia analysis with motion-artifact reduction
Live METS display with ST-level and ST-slope trend graphs
Full-disclosure, beat-to-beat record of the complete exercise
Post-test review and edit facility
Automatic stage printouts and selectable real-time printouts

AcquisitionSimultaneous 12-lead, 12-bit

Sampling Rate1000 samples/sec

Frequency Response0.5 Hz to 100 Hz

CMRR90 dB @ 50 Hz

Treadmill Speed0 to 30 kmph

Elevation Range0 to 26%

Patient CapacityUp to 180 kg

Wireless Unit< 160 g, ~10 tests per charge

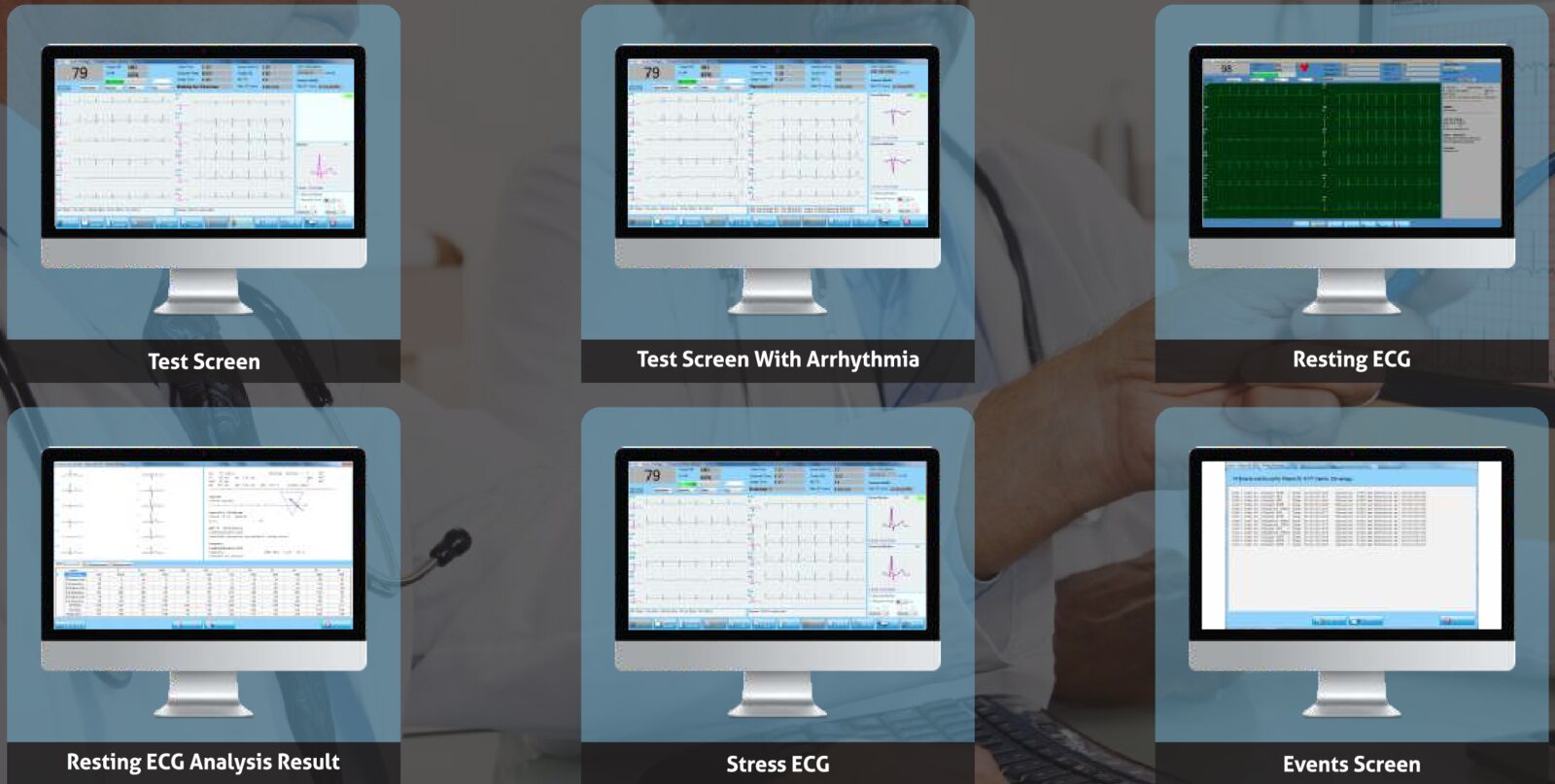

Dynatrac Neo software with HES algorithm - test screen, arrhythmia view, resting ECG, analysis results, stress ECG and events screen

Dynatrac Neo software with HES algorithm — test screen, arrhythmia view, resting ECG, analysis results, stress ECG and events review

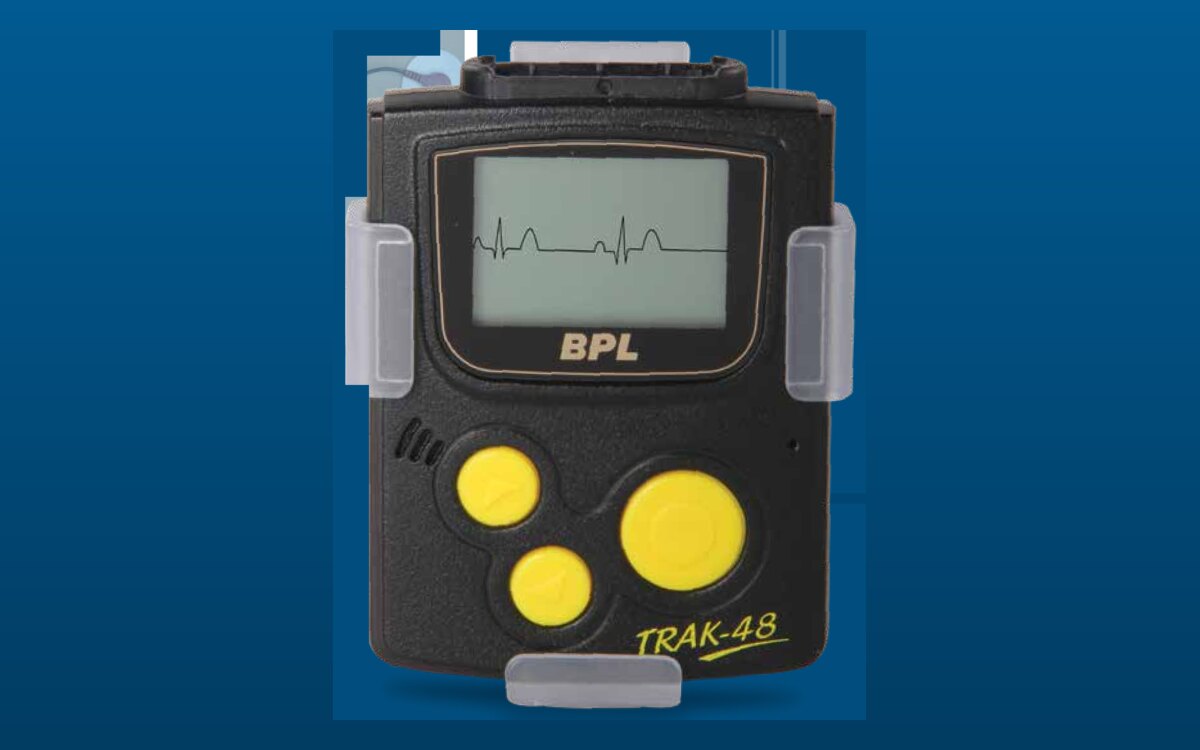

BPL TRAK 48 digital Holter recorder with LCD showing live ECG, worn clipped to a patient

Ambulatory ECG

Digital Holter Recorder — BPL TRAK 48

Some arrhythmias only appear when the patient is going about an ordinary day. The TRAK 48 is a pocket-sized ambulatory ECG recorder — 68 × 53 × 16 mm and 42 grams without its battery — that clips to a belt or hangs from a lanyard and keeps recording for well over 48 hours on a single AAA cell.

It records full disclosure with no data compression, at 128 to 1024 samples per second, in either 3-channel mode (5- or 7-wire patient cable) or full 12-lead mode (10-wire cable). An LCD on the front displays live ECG during hook-up, so electrode contact can be confirmed before the patient leaves, and the recorder detects the short, narrow pulses of an implanted pacemaker. Data comes off through the embedded USB connector or on the removable SD card.

The analysis software covers QRS template classification, arrhythmia analysis with color-coded beat differentiation and manual reclassification, heart rate turbulence, ST-segment change and myocardial ischemia evaluation, atrial fibrillation, obstructive sleep apnea, pacemaker analysis, and heart rate variability in both time and frequency domains — with open GDT and XML interfaces for export into hospital systems.

Channels3 or 12 channel digital

Sample Rate128 to 1024 samples/sec

Recording Time48 hrs (12-lead) / 7 days (3-channel)

MemoryNon-volatile SD card, up to 2 GB

Dimensions68 × 53 × 16 mm

Weight42 grams (excluding battery)

Battery1 × AAA alkaline or Ni-MH

Input Impedance≥ 10 MΩ, CMRR ≥ 60 dB

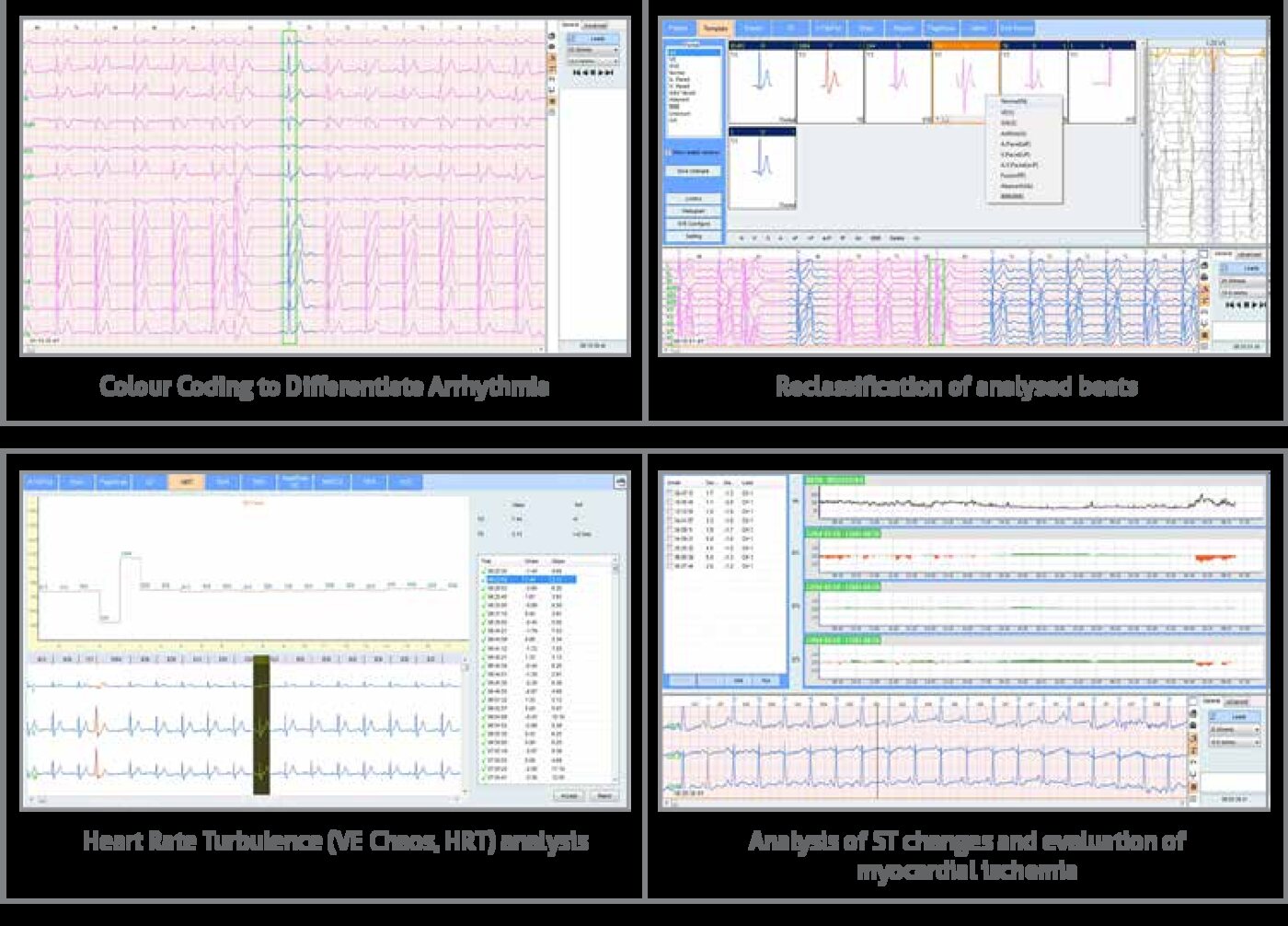

Holter software showing color-coded arrhythmia, beat reclassification, heart rate turbulence analysis and ST change evaluation

Holter analysis software — color-coded arrhythmia differentiation, beat reclassification, heart rate turbulence and ST change evaluation

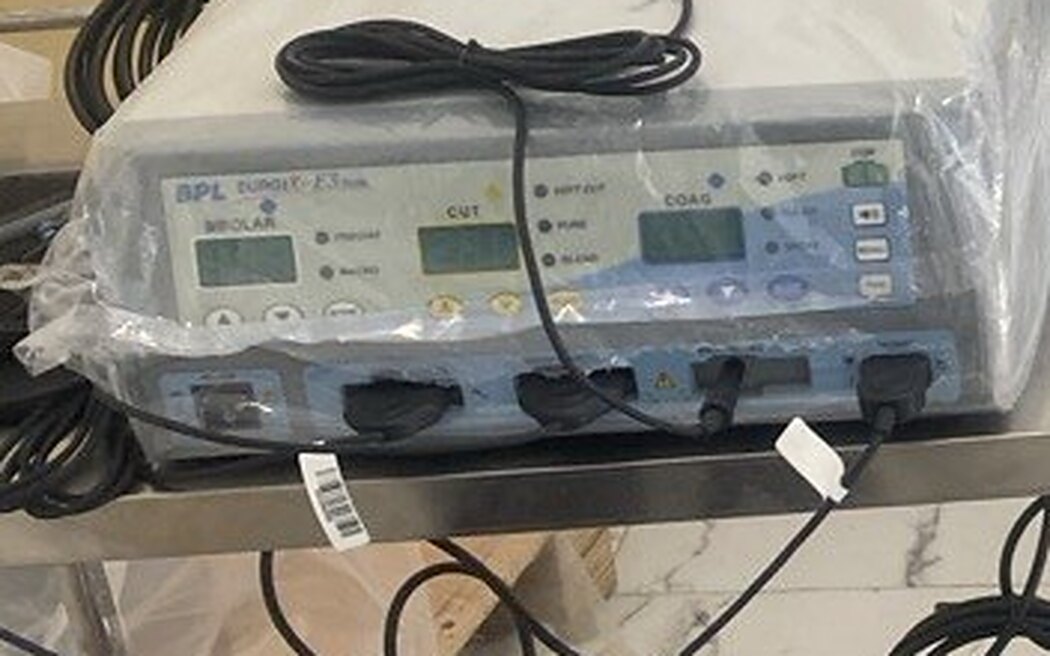

BPL Surgix ES Elite electrosurgical unit with separate Bipolar, Cut and Coagulation displays

Operating Room

Cautery Machine — Electrosurgical Unit (ESU)

A cautery machine — properly, an electrosurgical unit — passes high-frequency electrical current through tissue in order to cut and to coagulate. Because the energy is concentrated at the tip of the active electrode, the surgeon can make an incision and seal the bleeding vessels in the same pass. That shortens operating time and markedly reduces intra-operative blood loss compared with a cold scalpel.

Units are supplied in monopolar and bipolar configurations. In monopolar mode the current flows from the active electrode through the patient to a return plate, which suits general cutting and coagulation across a larger field. In bipolar mode the current travels only between the two tips of the forceps, so the energy stays confined to the tissue being grasped — the safer choice for delicate work near critical structures, and for patients with implanted devices.

Separate Cut, Blend and Coagulation outputs let the surgeon match the effect to the tissue: pure cut for a clean incision, blend for cutting with added hemostasis, and dedicated coagulation modes for sealing, each with its own power setting and digital display. We supply electrosurgical units for general surgery, gynecology, ENT, urology and dermatology, together with the handpieces, patient plates, footswitches and cables they need — and our engineers commission and train on site, as we did with the BPL ESU installed at Salute General Hospital in Mekelle.

Monopolar and bipolar output
Independent Cut, Blend and Coagulation modes
Separate digital power display for each mode
Hand-switch and foot-switch control
Supplied with handpieces, patient plates and cables
On-site installation, commissioning and staff training

Bridging the gap in access to advanced medical technology

Our Mission

Our Vision

Our core values

Integrity

Quality

Customer Centricity

Innovation

Collaboration

Comprehensive medical equipment for modern healthcare

Imaging Equipment

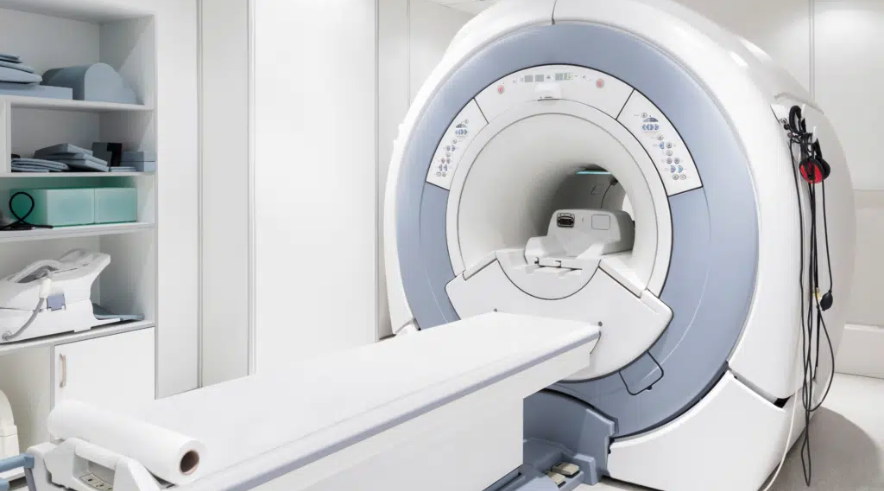

MRI Machine

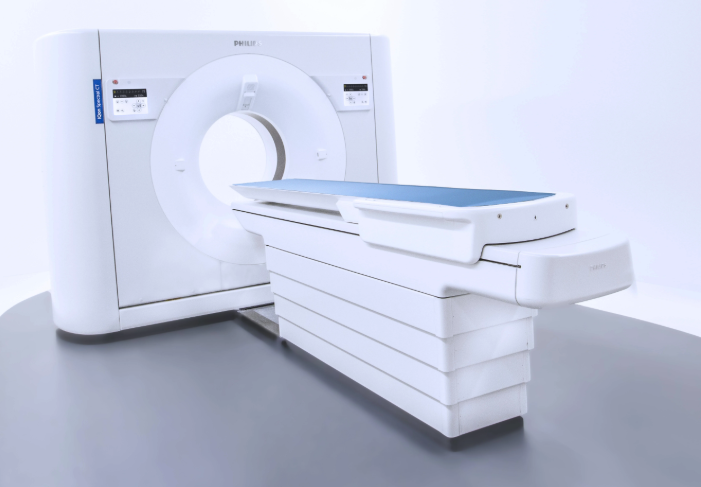

CT-Scan Machine

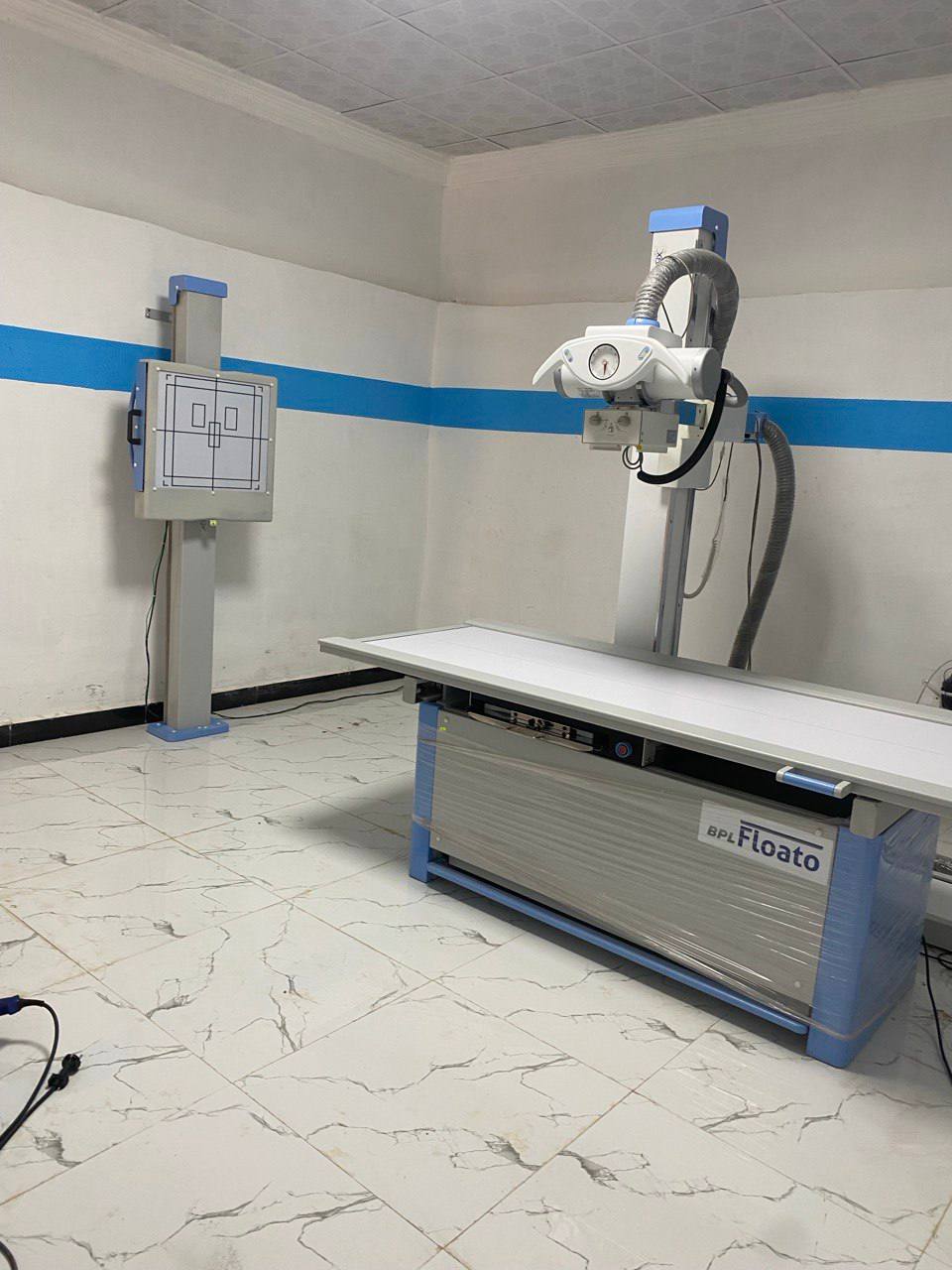

X-Ray Machine

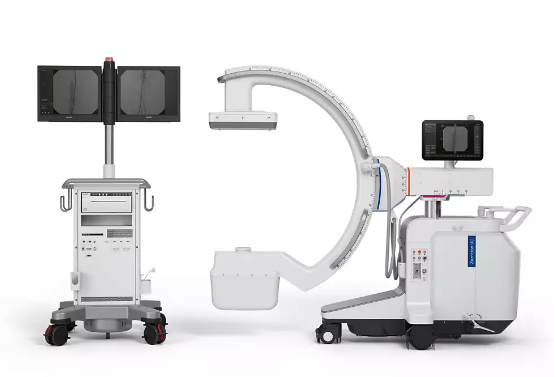

C-Arm Machine

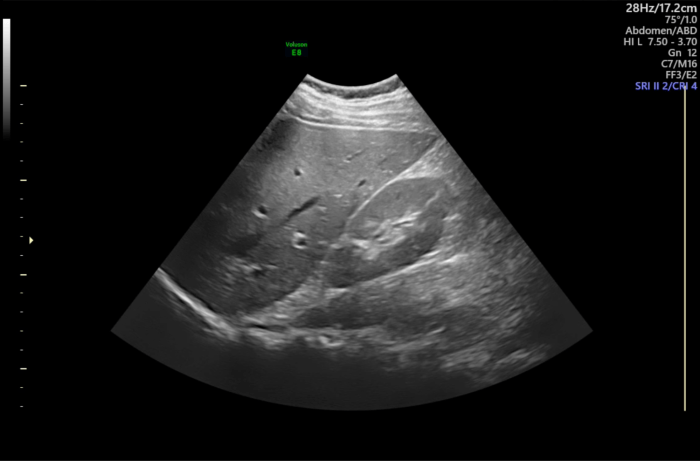

Ultrasound Machine

OR Equipment

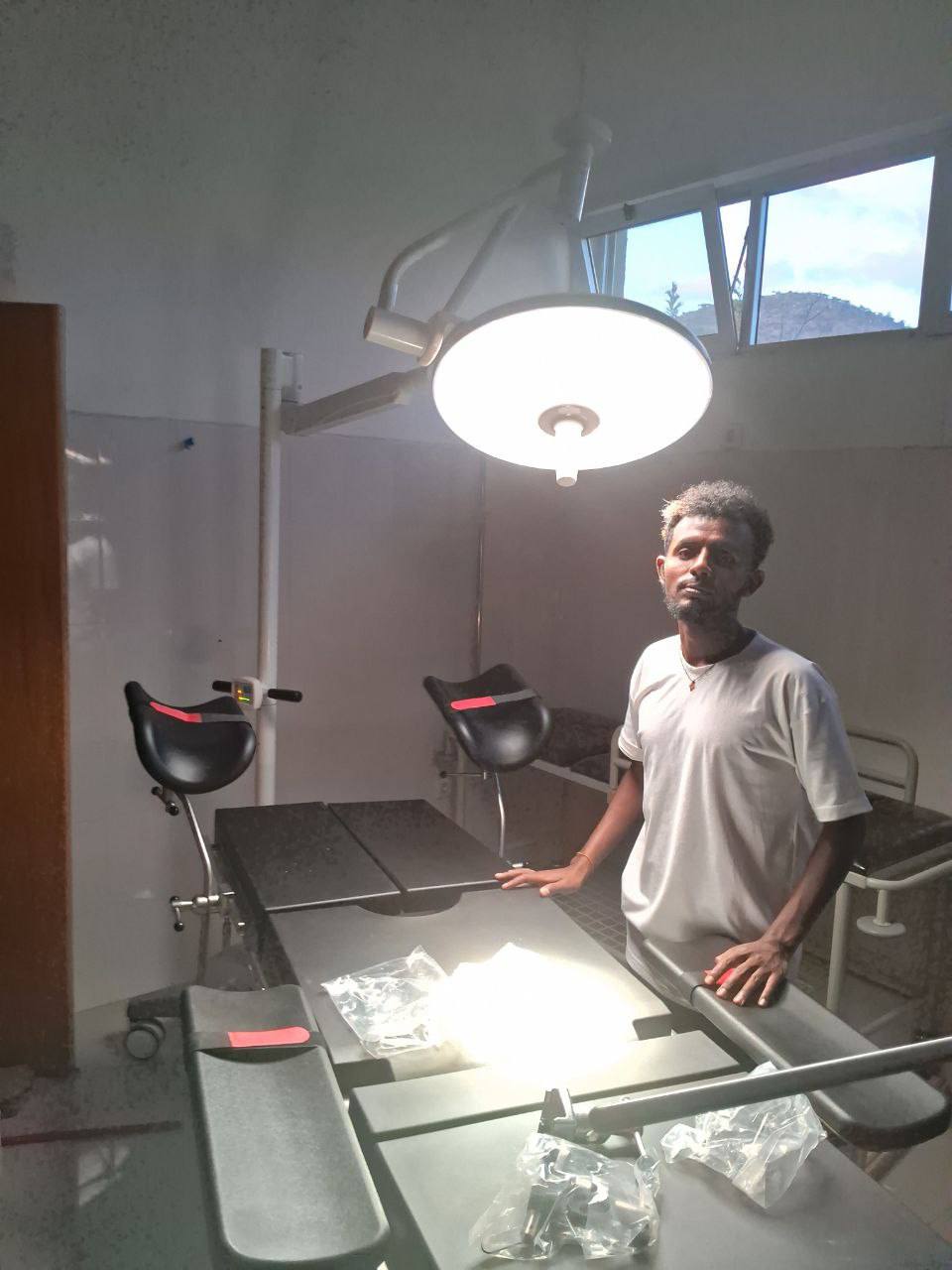

OR Light

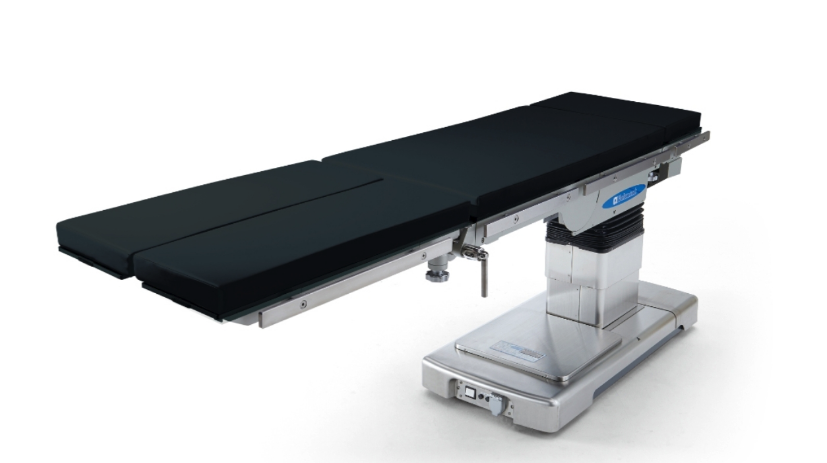

OR Table

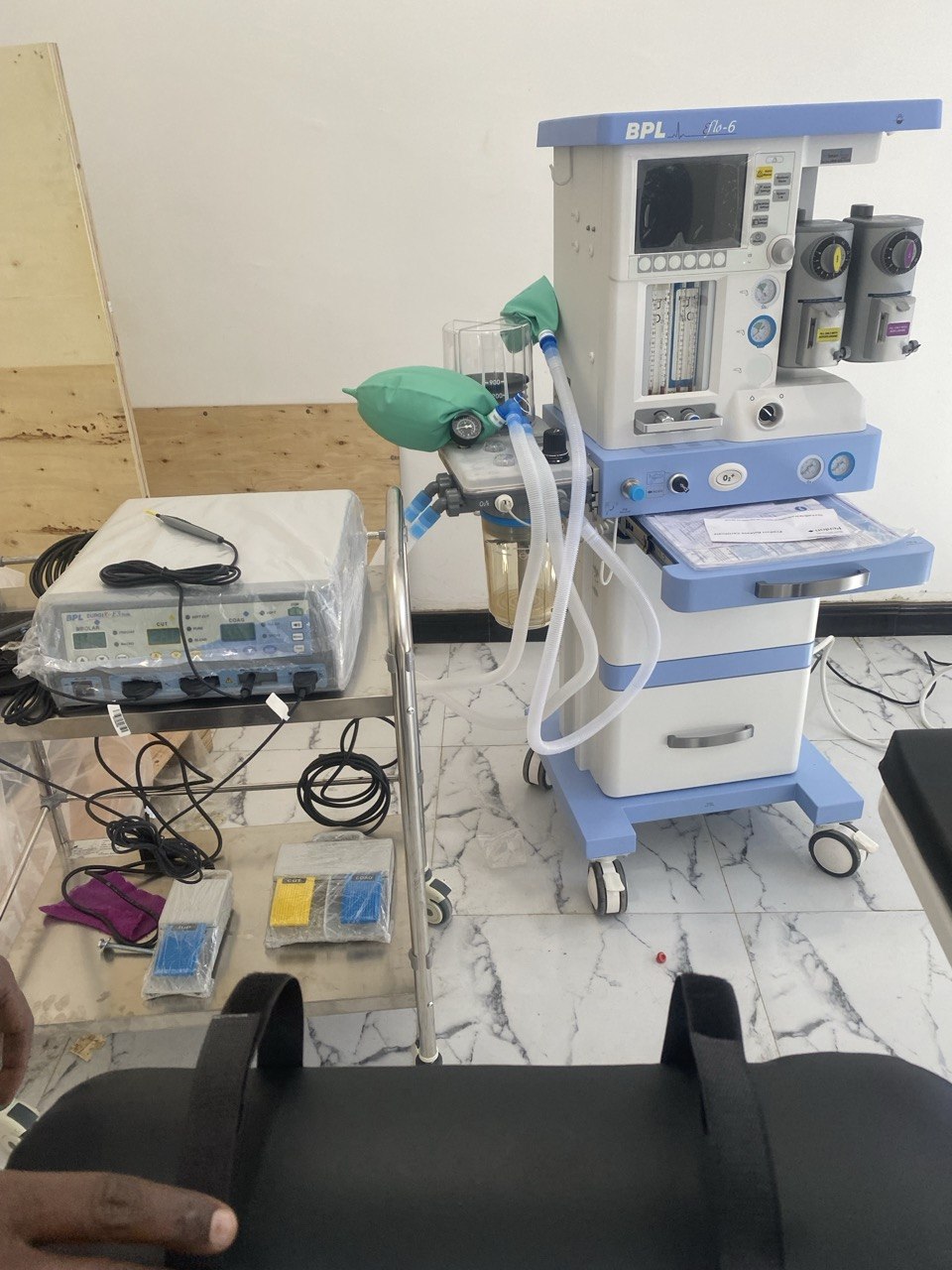

Anesthesia Machine

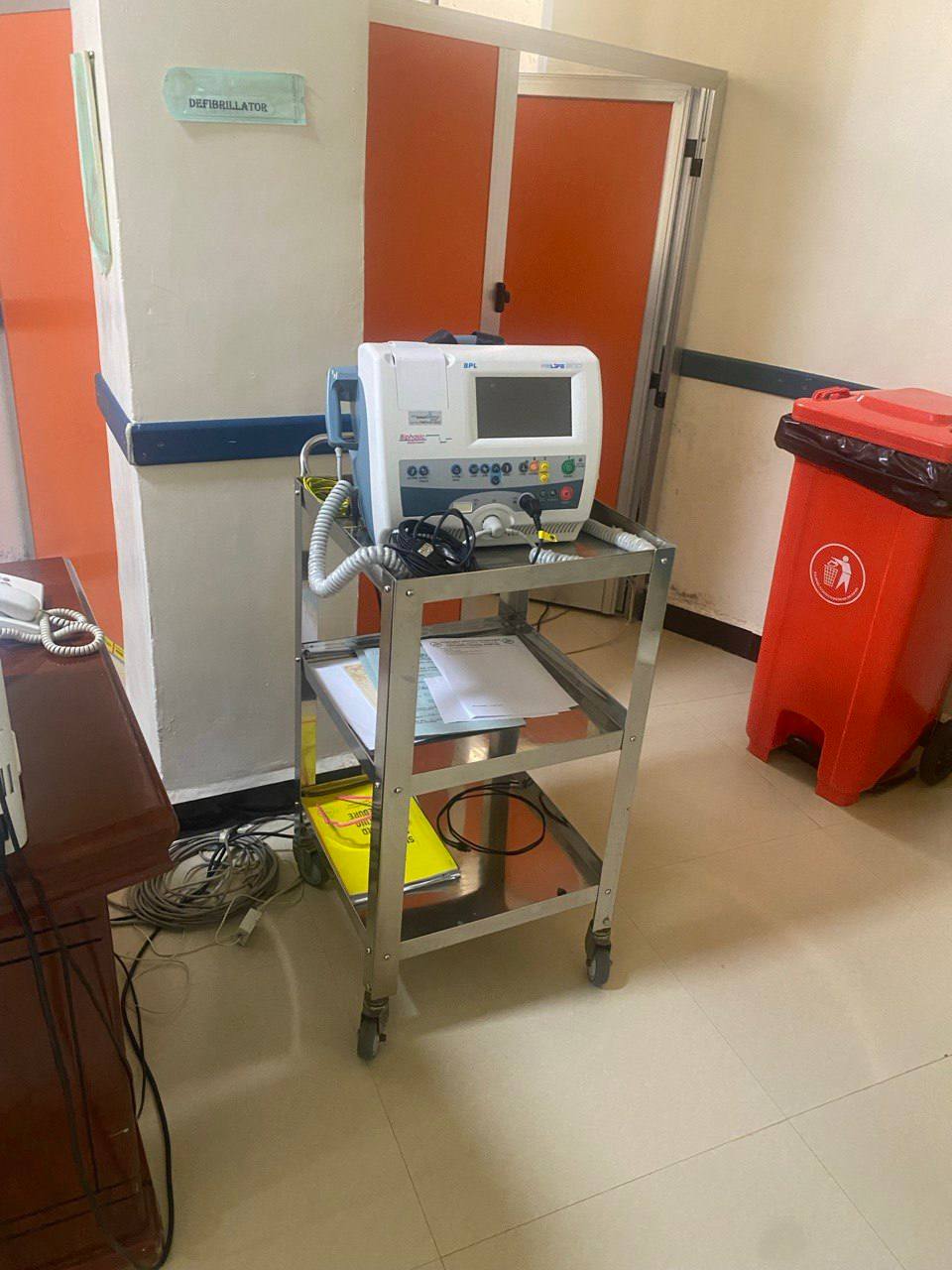

Mechanical Ventilator

Cautery Machine (Electrosurgical Unit)

Cardiac Diagnostics & Stress Testing

ECG Stress Test System

Stress Test BP Monitor

Digital Holter Recorder

Stress Test Software

Holter Analysis Software

Dialysis Products

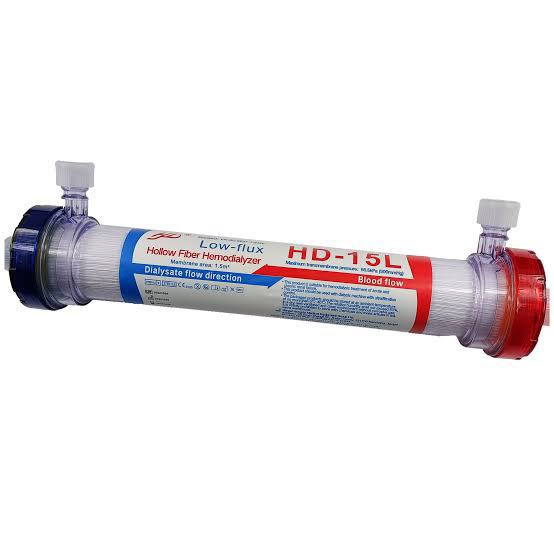

Dialysis Machine

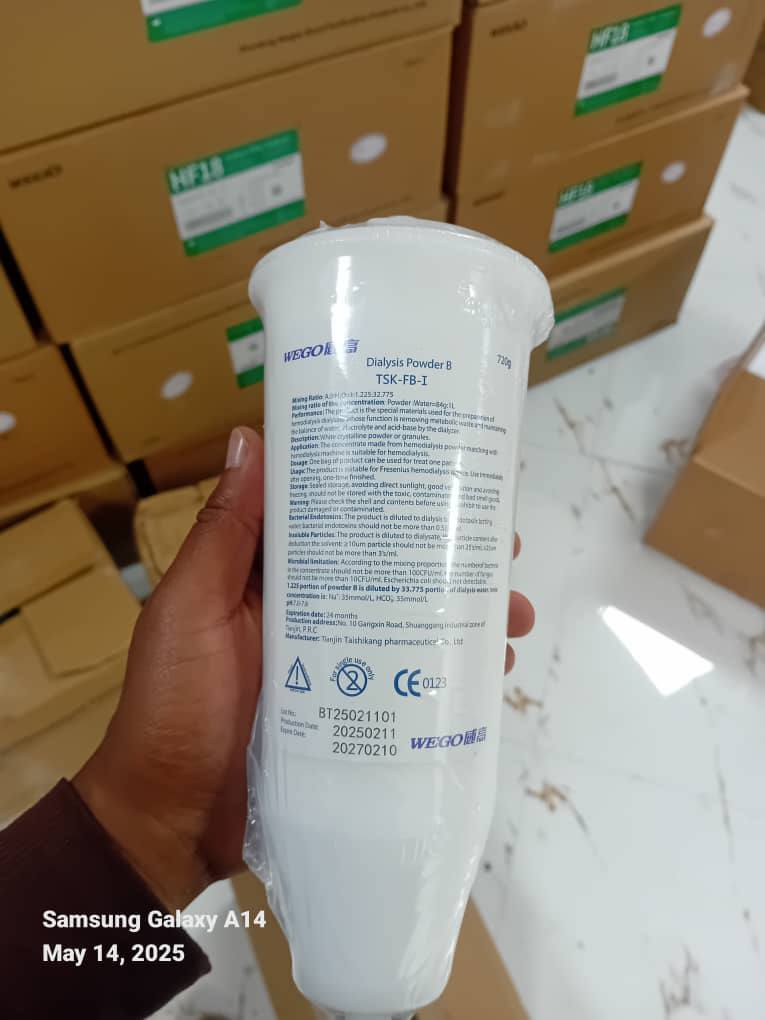

Dialysis Powder (Bicarbonate Concentrate)

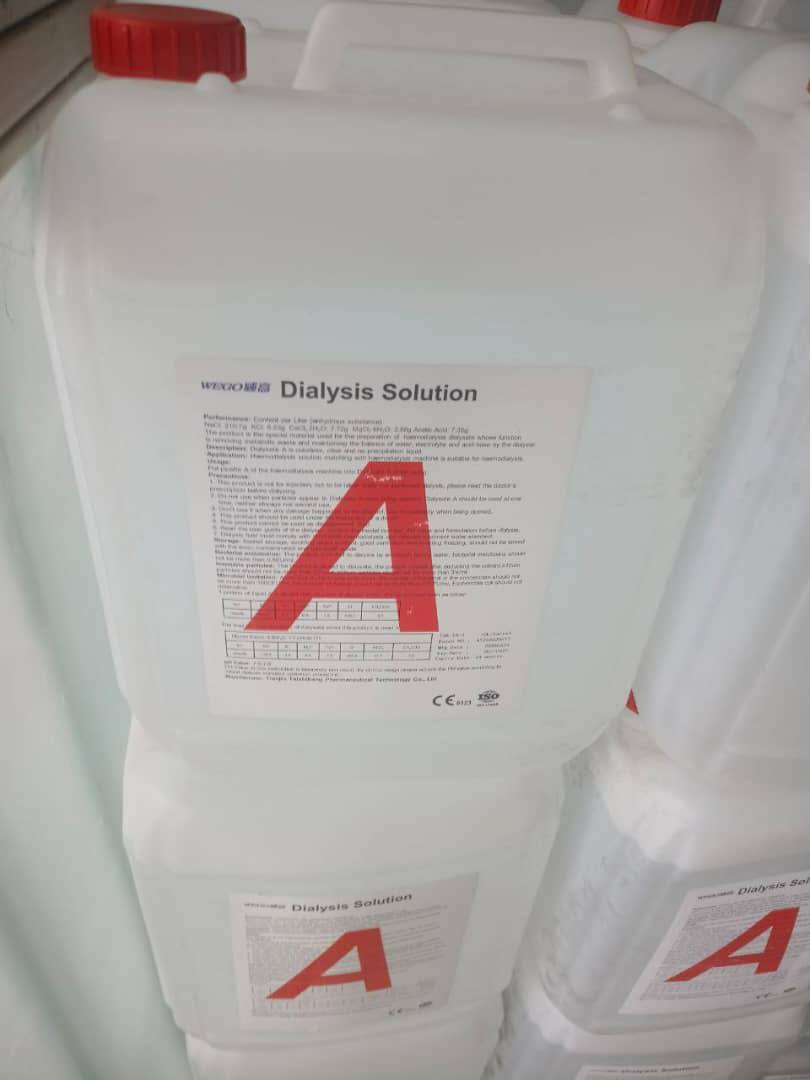

Acid Concentrate

Monitoring Devices

Patient Monitor

ECG Machine

EEG and EMG

A closer look at our cardiac diagnostic and electrosurgery range

ECG Stress Test System — BPL Dynatrac Ultra

Digital Holter Recorder — BPL TRAK 48

Cautery Machine — Electrosurgical Unit (ESU)

Trusted manufacturing partners

Dialysis consumables, ready to ship

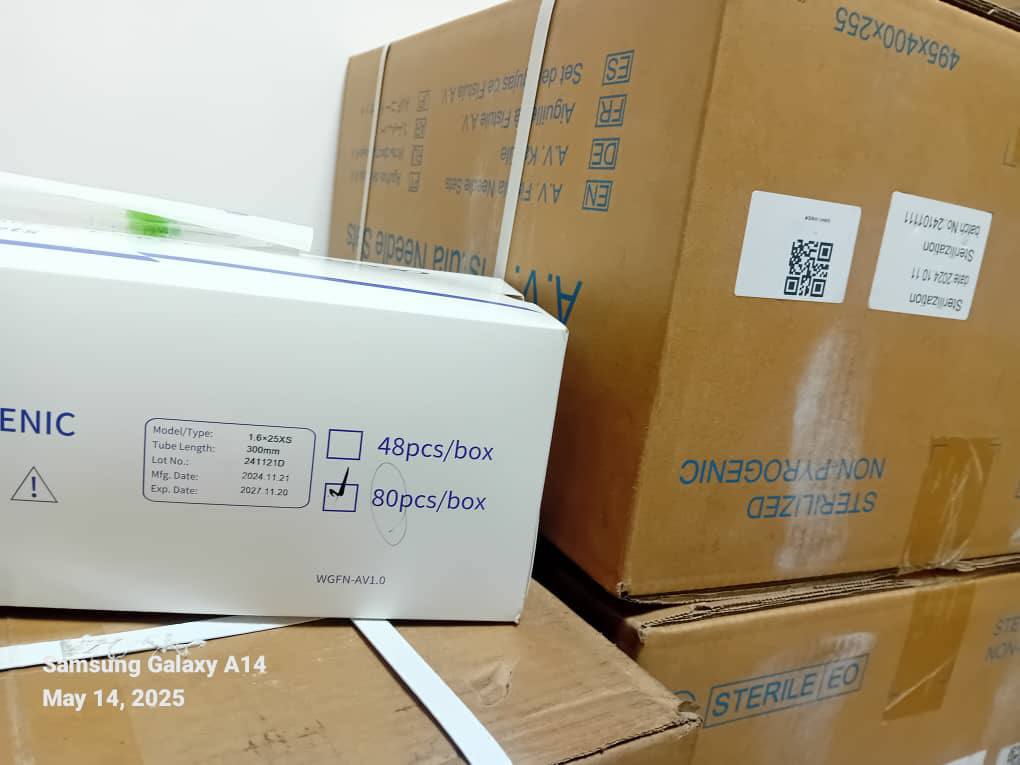

Sterilized Supplies

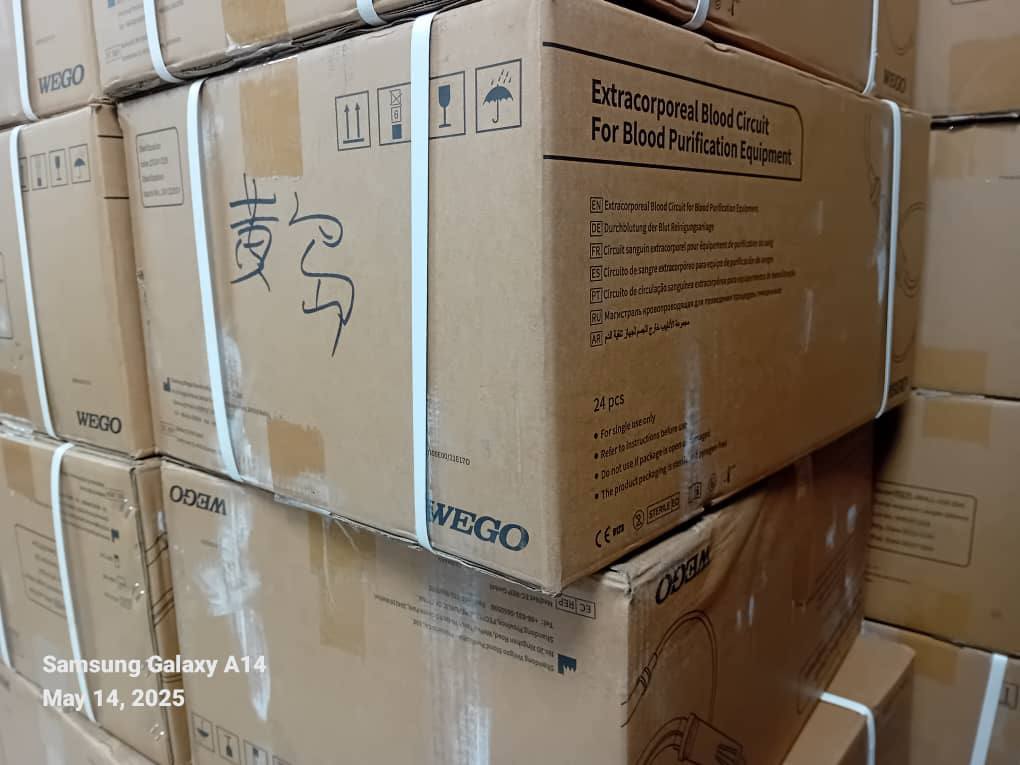

Extracorporeal Blood Circuit

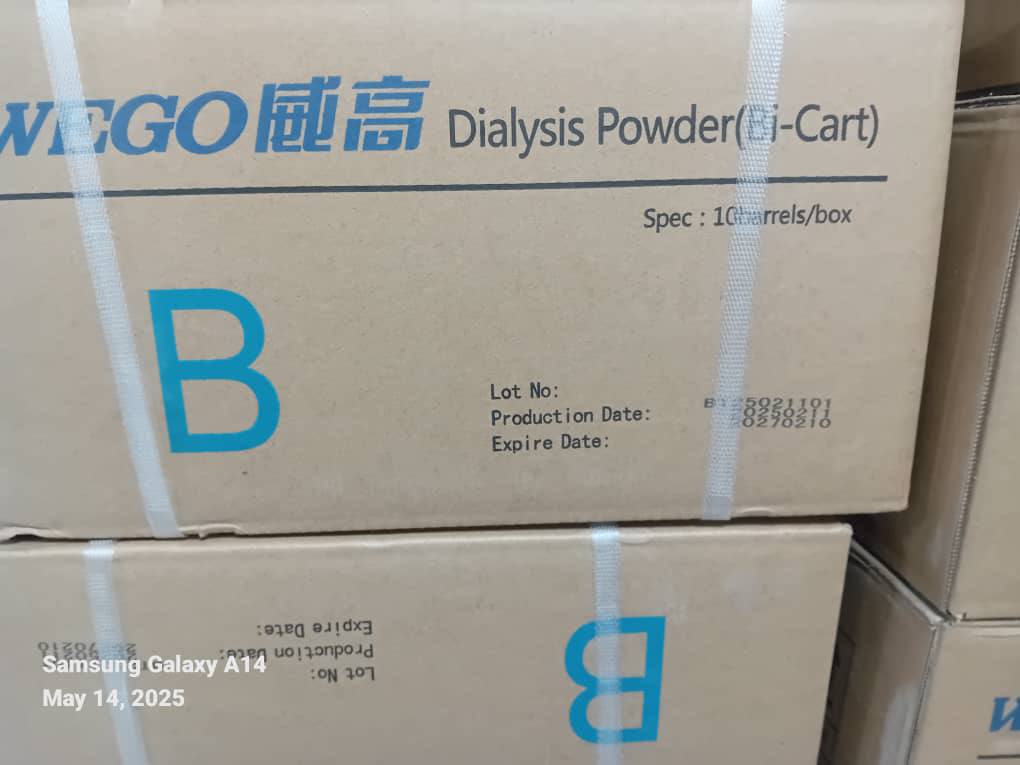

Dialysis Powder (Bi-Cart)

Maintenance that keeps you running

Preventive Maintenance

Corrective Maintenance

Recent installations & achievements

Jezira Specialty Center, Jigjiga

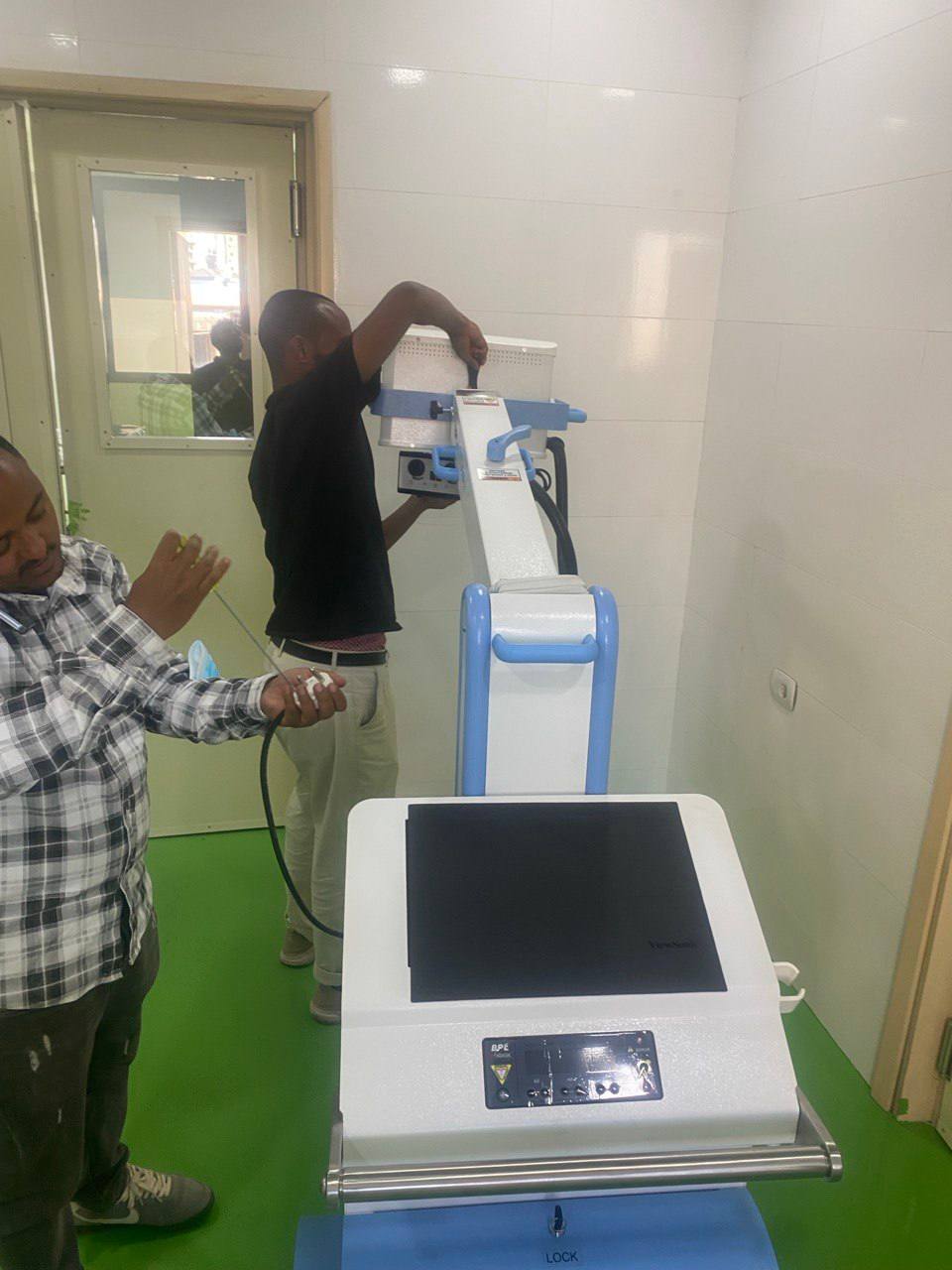

Gesund Cardiac Center

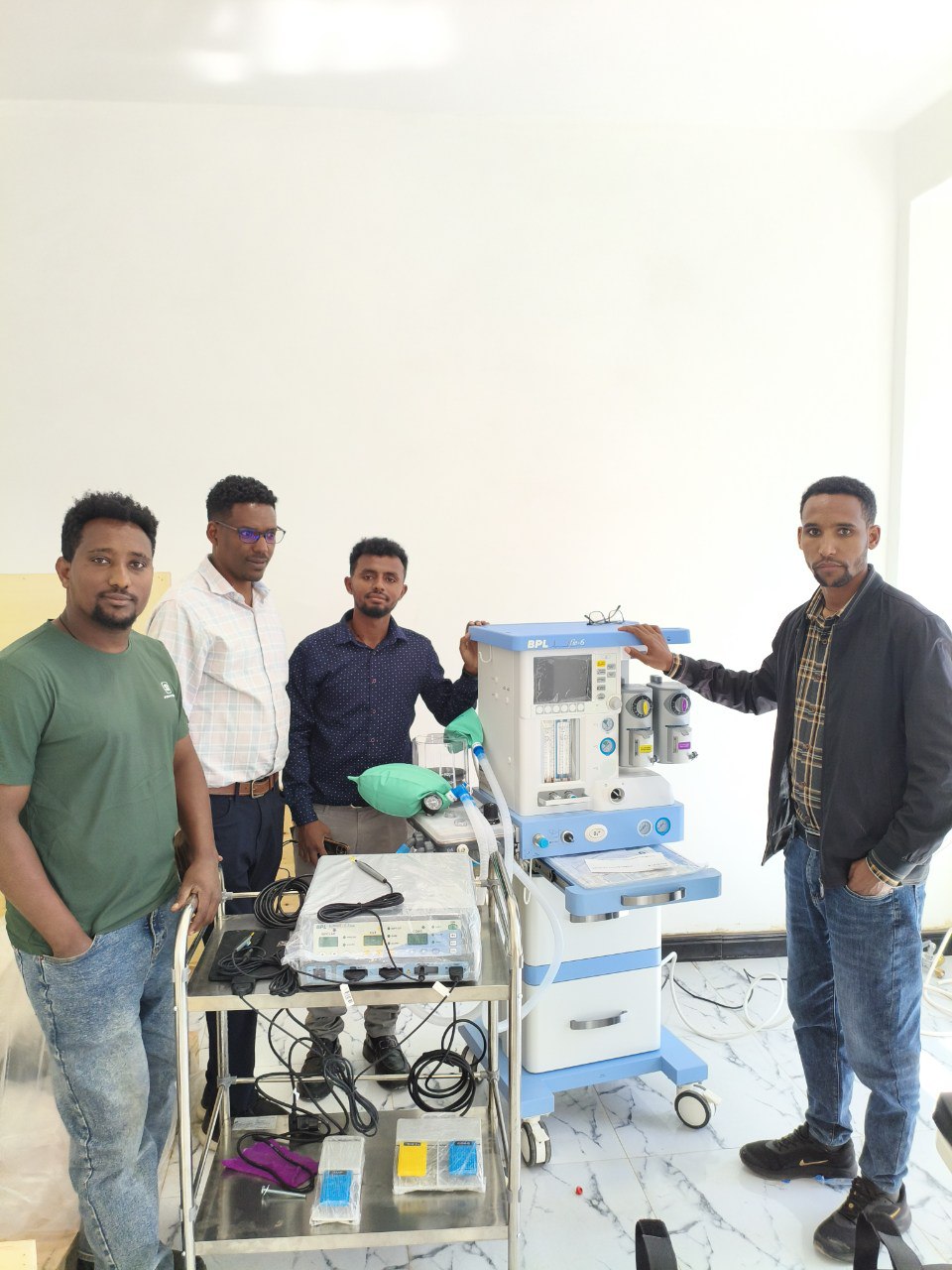

Salute General Hospital, Mekelle
